Intersection between Gaussian

An answer to this question on Stack Overflow.

Question

I'm just trying to plot two gaussians and to find the intersection point. I have the following code. It's not plotting the exact intersection though and I really cannot figure out why. It's like just barely slightly off but I worked through the derived solution if we took the log of subtracted gaussians and yeah it seems like it should be correct. Can anyone help? Thank you so much!

import numpy as np
import matplotlib.pyplot as plt
def plot_normal(x, mean = 0, sigma = 1):
	return 1.0/(2*np.pi*sigma**2) * np.exp(-((x-mean)**2)/(2*sigma**2))
# found online
def solve_gasussians(m1, s1, m2, s2):
  a = 1.0/(2.0*s1**2) - 1.0/(2.0*s2**2)
  b = m2/(s2**2) - m1/(s1**2)
  c = m1**2 /(2*s1**2) - m2**2 / (2.0*s2**2) - np.log(s2/s1)
  return np.roots([a,b,c])
s1 = np.linspace(0, 10,300)
s2 = np.linspace(0, 14, 300)
solved_val = solve_gasussians(5.0, 0.5, 7.0, 1.0)
print solved_val
solved_val = solved_val[0]
plt.figure('Baseline Distributions')
plt.title('Baseline Distributions')
plt.xlabel('Response Rate')
plt.ylabel('Probability')
plt.plot(s1, plot_normal(s1, 5.0, 0.5),'r', label='s1')
plt.plot(s2, plot_normal(s2, 7.0, 1.0),'b', label='s2')
plt.plot(solved_val, plot_normal(solved_val, 7.0, 1.0), 'mo')
plt.legend()
plt.show()

Answer

The mistake is here. This line:

def plot_normal(x, mean = 0, sigma = 1):
  return 1.0/(2*np.pi*sigma**2) * np.exp(-((x-mean)**2)/(2*sigma**2))

Should be this:

def plot_normal(x, mean = 0, sigma = 1):
  return 1.0/np.sqrt(2*np.pi*sigma**2) * np.exp(-((x-mean)**2)/(2*sigma**2))

You forgot the sqrt.

It would be wiser to use a pre-existing normal pdf if that's available, such as:

import scipy.stats
def plot_normal(x, mean = 0, sigma = 1):
  return scipy.stats.norm.pdf(x,loc=mean,scale=sigma)

It's also possible to solve for the intersections exactly. This answer provides a quadratic equation for the roots of the Gaussians' intersections. Using maxima to solve for x gives the following expression. Which, while complicated, does not rely on iterative methods and can be automatically generated from simpler expressions.

def solve_gaussians(m1,s1,m2,s2):
  x1 = (s1*s2*np.sqrt((-2*np.log(s1/s2)*s2**2)+2*s1**2*np.log(s1/s2)+m2**2-2*m1*m2+m1**2)+m1*s2**2-m2*s1**2)/(s2**2-s1**2)
  x2 = -(s1*s2*np.sqrt((-2*np.log(s1/s2)*s2**2)+2*s1**2*np.log(s1/s2)+m2**2-2*m1*m2+m1**2)-m1*s2**2+m2*s1**2)/(s2**2-s1**2)
  return x1,x2

Putting it altogether gives:

import numpy as np
import matplotlib.pyplot as plt
import scipy.stats
def plot_normal(x, mean = 0, sigma = 1):
  return scipy.stats.norm.pdf(x,loc=mean,scale=sigma)
#Use the equation from [this answer](https://stats.stackexchange.com/a/12213/12116) solved for x
def solve_gaussians(m1,s1,m2,s2):
  x1 = (s1*s2*np.sqrt((-2*np.log(s1/s2)*s2**2)+2*s1**2*np.log(s1/s2)+m2**2-2*m1*m2+m1**2)+m1*s2**2-m2*s1**2)/(s2**2-s1**2)
  x2 = -(s1*s2*np.sqrt((-2*np.log(s1/s2)*s2**2)+2*s1**2*np.log(s1/s2)+m2**2-2*m1*m2+m1**2)-m1*s2**2+m2*s1**2)/(s2**2-s1**2)
  return x1,x2
s = np.linspace(0, 14,300)
x = solve_gaussians(5.0,0.5,7.0,1.0)
plt.figure('Baseline Distributions')
plt.title('Baseline Distributions')
plt.xlabel('Response Rate')
plt.ylabel('Probability')
plt.plot(s, plot_normal(s, 5.0, 0.5),'r', label='s1')
plt.plot(s, plot_normal(s, 7.0, 1.0),'b', label='s2')
plt.plot(x[0],plot_normal(x[0],5.,0.5),'mo')
plt.plot(x[1],plot_normal(x[1],5.,0.5),'mo')
plt.legend()
plt.show()

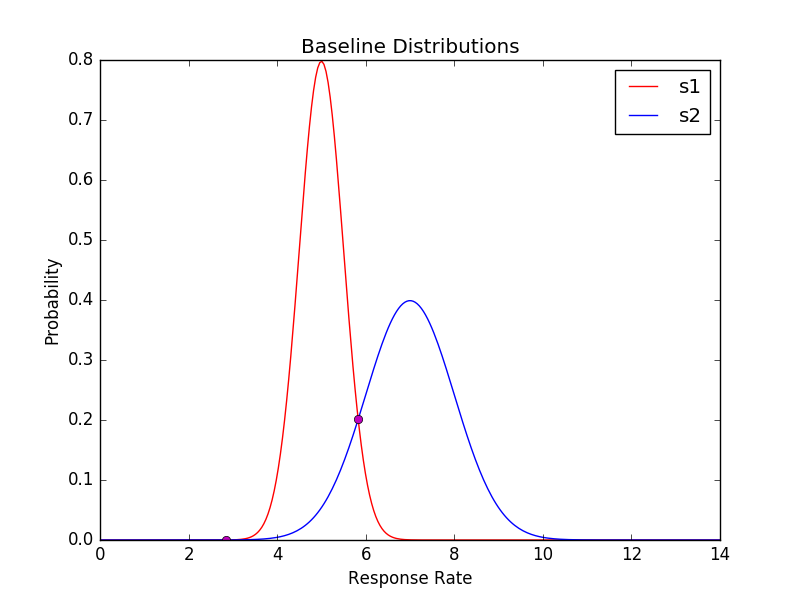

Giving:

Intersection of Gaussians
