Most efficient way to select point with the most surrounding points

2017-06-05

An answer to this question on Stack Overflow.

Question

N.B: there's a major edit at the bottom of the question - check it out

Question

Say I have a set of points:

I want to find the point with the most points surrounding it, within radius $R$ (ie a circle) or within $\pm R$ (ie a square) of the point for 2 dimensions. I'll refer to it as the densest point function.

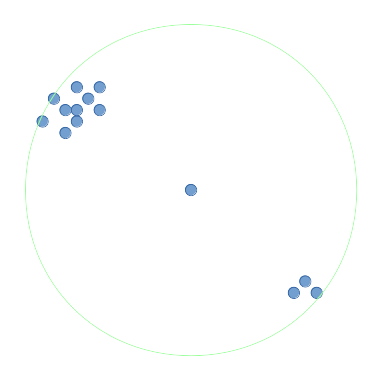

For the diagrams in this question, I'll represent the surrounding region as circles. In the image above, the middle point's surrounding region is shown in green. This middle point has the most surrounding points of all the points within radius $R$ and would be returned by the densest point function.

What I've tried

A viable way to solve this problem would be to use a range searching solution; this answer explains further and that it has " $O(log(n)}+k)$ worst-case time". Using this, I could get the number of points surrounding each point and choose the point with largest surrounding point count.

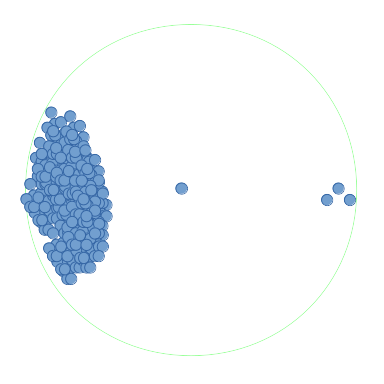

However, if the points were extremely densely packed (in the order of a million), as such:

then each of these million points ( $1e6$ ) would need to have a range search performed. The worst-case time $O(log(n)}+k)$ , where $K$ is the number of points returned in the range, is true for the following point tree types:

kd-trees of two dimensions (which are actually slightly worse, at $O(\sqrt{n}+k)$ ),
2d-range trees,
Quadtrees, which have a worst-case time of $O(n)$

So, for a group of $1e+6$ points within radius $R$ of all points within the group, it gives complexity of $O(log(1e6)}+1e6)$ for each point. This yields over a trillion operations!

Any ideas on a more efficient, precise way of achieving this, so that I could find the point with the most surrounding points for a group of points, and in a reasonable time (preferably $O(n log(n))$ or less)?

EDIT

Turns out that the method above is correct! I just need help implementing it.

(Semi-)Solution

If I use a 2d-range tree:

A range reporting query costs $O(log^{d}(n)}+k)$ , for $k$ returned points,
For a range tree with fractional cascading (also known as layered range trees) the complexity is $O(log^{d-1}(n)}+k)$ ,
For 2 dimensions, that is $O(log(n)}+k)$ ,
Furthermore, if I perform a range counting query (i.e., I do not report each point), then it costs $O(log(n))$ .

I'd perform this on every point - yielding the $O(n log(n))$ complexity I desired!

Problem

However, I cannot figure out how to write the code for a counting query for a 2d layered range tree.

I've found a great resource (from page 113 onwards) about range trees, including 2d-range tree psuedocode. But I can't figure out how to introduce fractional cascading, nor how to correctly implement the counting query so that it is of O(log n) complexity.

I've also found two range tree implementations here and here in Java, and one in C++ here, although I'm not sure this uses fractional cascading as it states above the countInRange method that

It returns the number of such points in worst case * O(log(n)^d) time. It can also return the points that are in the rectangle in worst case * O(log(n)^d + k) time where k is the number of points that lie in the rectangle.

which suggests to me it does not apply fractional cascading.

Refined question

To answer the question above therefore, all I need to know is if there are any libraries with 2d-range trees with fractional cascading that have a range counting query of complexity $O(log(n))$ so I don't go reinventing any wheels, or can you help me to write/modify the resources above to perform a query of that complexity?

Also not complaining if you can provide me with any other methods to achieve a range counting query of 2d points in $O(log(n))$ in any other way!

Answer

You can speed up whatever algorithm you use by preprocessing your data in O(n) time to estimate the number of neighbouring points.

For a circle of radius R, create a grid whose cells have dimension R in both the x- and y-directions. For each point, determine to which cell it belongs. For a given cell c this test is easy:

c.x<=p.x && p.x<=c.x+R && c.y<=p.y && p.y<=c.y+R

(You may want to think deeply about whether a closed or half-open interval is correct.)

If you have relatively dense/homogeneous coverage, then you can use an array to store the values. If coverage is sparse/heterogeneous, you may wish to use a hashmap.

Now, consider a point on the grid. The extremal locations of a point within a cell are as indicated:

Points at the corners of the cell can only be neighbours with points in four cells. Points along an edge can be neighbours with points in six cells. Points not on an edge are neighbours with points in 7-9 cells. Since it's rare for a point to fall exactly on a corner or edge, we assume that any point in the focal cell is neighbours with the points in all 8 surrounding cells.

So, if a point p is in a cell (x,y), N[p] identifies the number of neighbours of p within radius R, and Np[y][x] denotes the number of points in cell (x,y), then N[p] is given by:

N[p] = Np[y][x]+
       Np[y][x-1]+
       Np[y-1][x-1]+
       Np[y-1][x]+
       Np[y-1][x+1]+
       Np[y][x+1]+
       Np[y+1][x+1]+
       Np[y+1][x]+
       Np[y+1][x-1]

Once we have the number of neighbours estimated for each point, we can heapify that data structure into a maxheap in O(n) time (with, e.g. make_heap). The structure is now a priority-queue and we can pull points off in O(log n) time per query ordered by their estimated number of neighbours.

Do this for the first point and use a O(log n + k) circle search (or some more clever algorithm) to determine the actual number of neighbours the point has. Make a note of this point in a variable best_found and update its N[p] value.

Peek at the top of the heap. If the estimated number of neighbours is less than N[best_found] then we are done. Otherwise, repeat the above operation.

To improve estimates you could use a finer grid, like so:

along with some clever sliding window techniques to reduce the amount of processing required (see, for instance, this answer for rectangular cases - for circular windows you should probably use a collection of FIFO queues). To increase security you can randomize the origin of the grid.

Considering again the example you posed:

It's clear that this heuristic has the potential to save considerable time: with the above grid, only a single expensive check would need to be performed in order to prove that the middle point has the most neighbours. Again, a higher-resolution grid will improve the estimates and decrease the number of expensive checks which need to be made.

You could, and should, use a similar bounding technique in conjunction with mcdowella's answers; however, his answer does not provide a good place to start looking, so it is possible to spend a lot of time exploring low-value points.
