How can I find a line segment with the most intersections along with the coordinates of the intersection points?
An answer to this question on the Scientific Computing Stack Exchange.
Question
There are $n$ points in a 2-D plane and each is given by its $x$ and $y$ coordinates. They are stored in an array in an ascending order with respect to $x$.
All points are connected together by line segments ($n\choose 2$ lines). Within the complete graph created by these line segments, how can we find a line which has the most number of intersections?

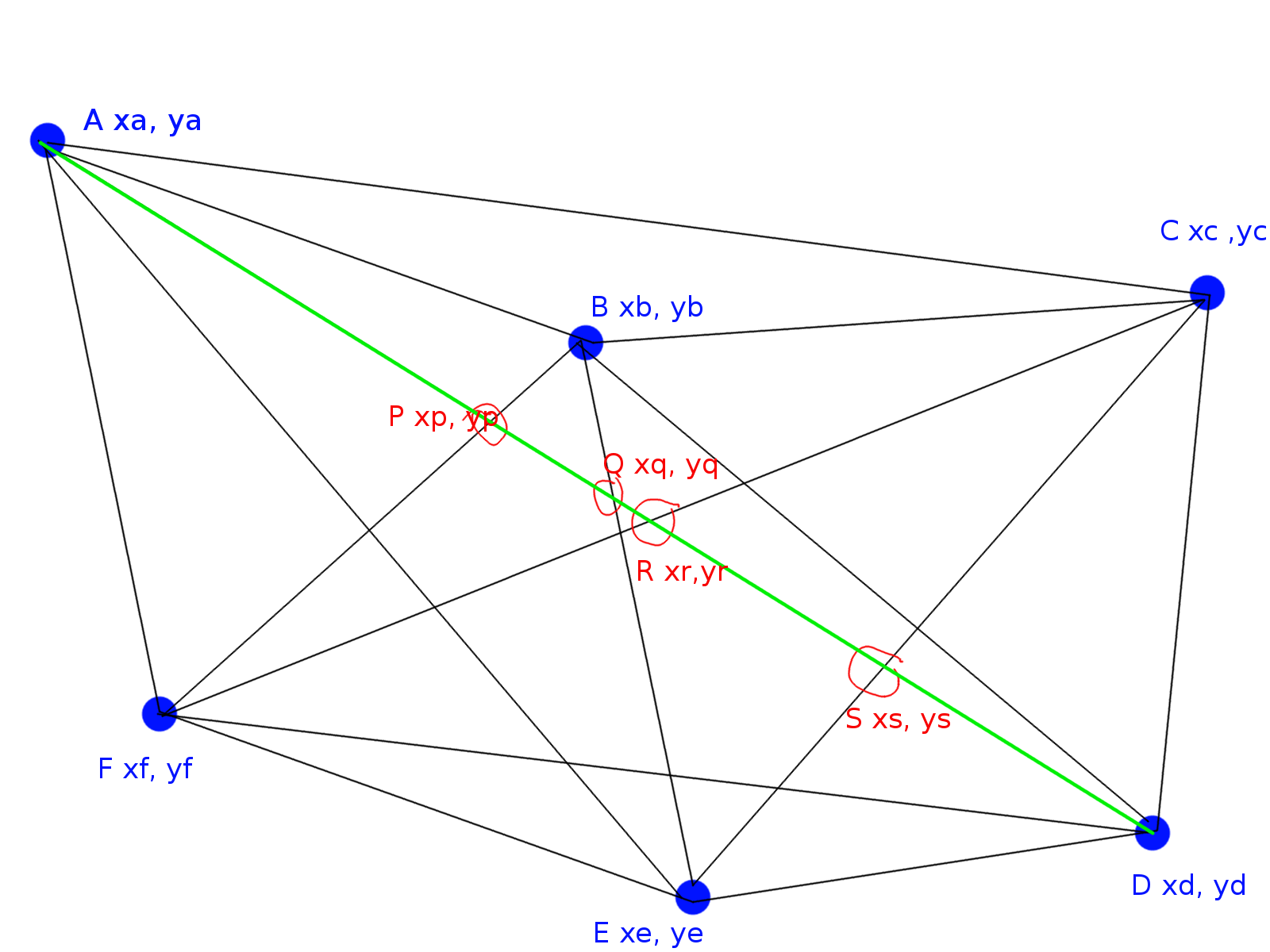

In the given example, $AD$ (marked green) is the line with the most intersections (4) in a set 6 points.
Answer
You can use the Bentley–Ottmann algorithm for this. Given a set of $n$ line segments with $k$ intersections, the algorithm can identify all intersections in $O((n+k)\log n)$ time and $O(n)$ space. In cases where $k=o(\frac{n^2}{\log n})$ (that is, cases in which $k$ has an appropriate upper bound) this offers time savings versus a naive $O(n^2)$ algorithm that simply compares all segments.
More generally, this problem can be approached using any of a number of sweep line algorithms.
The trick, then, is to increment a segment's value in a scoring hash table each time it is involved in an intersection.
A couple of hours of fiddling with CGAL didn't reveal an obvious way to do this and other implementations produced incorrect answers due to floating-point issues at the lines' end points. Nonetheless, this is the most computationally-efficient way to approach the problem.
I've copied my stab at building a CGAL implementation below with the appropriate spot to edit the code noted:
//Compile with: g++ -g 23222-line-with-most-intersections.cpp -lCGAL -lgmp -lmpfr
#include <CGAL/Exact_predicates_exact_constructions_kernel.h>
#include <CGAL/Arr_segment_traits_2.h>
#include <CGAL/Surface_sweep_2.h>
#include <CGAL/Surface_sweep_2_algorithms.h>
//#include <CGAL/Sweep_line_2.h>
#include <CGAL/Surface_sweep_2/Default_visitor.h>
#include <CGAL/Surface_sweep_2/Surface_sweep_2_utils.h>
#include <list>
#include <vector>
typedef CGAL::Exact_predicates_exact_constructions_kernel Kernel;
typedef Kernel::Point_2 Point_2;
typedef CGAL::Arr_segment_traits_2<Kernel> Traits_2;
typedef Traits_2::Curve_2 Segment_2;
namespace CGAL {
namespace Surface_sweep_2 {
template <typename GeometryTraits_2, typename OutputIterator,
typename Allocator_ = CGAL_ALLOCATOR(int)>
class IntersectionCounter :
public Default_visitor<IntersectionCounter<GeometryTraits_2,
OutputIterator,
Allocator_>,
GeometryTraits_2, Allocator_>
{
public:
typedef GeometryTraits_2 Geometry_traits_2;
typedef OutputIterator Output_iterator;
typedef Allocator_ Allocator;
private:
typedef Geometry_traits_2 Gt2;
typedef IntersectionCounter<Gt2, Output_iterator, Allocator>
Self;
typedef Default_visitor<Self, Gt2, Allocator> Base;
public:
typedef typename Base::Event Event;
typedef typename Base::Subcurve Subcurve;
typedef typename Subcurve::Status_line_iterator Status_line_iterator;
typedef typename Gt2::X_monotone_curve_2 X_monotone_curve_2;
typedef typename Gt2::Point_2 Point_2;
typedef typename Base::Surface_sweep_2 Surface_sweep_2;
protected:
Output_iterator m_out; // The output points.
public:
IntersectionCounter(Output_iterator out) :
m_out(out)
{}
template <typename CurveIterator>
void sweep(CurveIterator begin, CurveIterator end)
{
std::vector<X_monotone_curve_2> curves_vec;
std::vector<Point_2> points_vec;
curves_vec.reserve(std::distance(begin,end));
make_x_monotone(begin, end,
std::back_inserter(curves_vec),
std::back_inserter(points_vec),
this->traits());
//Original curves get converted into x-monotone curves here, but, since they
//are segments, their ordering and data appears to be unaltered
std::cout<<"x-monotone curves\n";
for(auto &x: curves_vec)
std::cout<<x<<" "<<(&x)<<std::endl;
std::cout<<"x-monotone points\n";
for(auto &x: points_vec)
std::cout<<x<<std::endl;
//Perform the sweep
Surface_sweep_2* sl = this->surface_sweep();
sl->sweep(curves_vec.begin(), curves_vec.end(),
points_vec.begin(), points_vec.end());
}
bool after_handle_event(Event* event,
Status_line_iterator /* iter */,
bool /* flag */)
{
//TODO: Magic should happen here
if ((
event->is_intersection() ||
event->is_weak_intersection()) && event->is_closed())
{
*m_out = event->point();
++m_out;
}
return true;
}
Output_iterator output_iterator() { return m_out; }
};
} // namespace Surface_sweep_2
namespace Ss2 = Surface_sweep_2;
template <typename CurveInputIterator, typename OutputIterator, typename Traits>
OutputIterator CountIntersections(
CurveInputIterator curves_begin,
CurveInputIterator curves_end,
OutputIterator points,
Traits &tr
){
// Define the surface-sweep types:
typedef Ss2::IntersectionCounter<Traits, OutputIterator> Visitor;
typedef Ss2::Surface_sweep_2<Visitor> Surface_sweep;
// Perform the sweep and obtain the intersection points.
Visitor visitor(points);
Surface_sweep surface_sweep(&tr, &visitor);
visitor.sweep(curves_begin, curves_end);
return visitor.output_iterator();
}
template <typename CurveInputIterator, typename OutputIterator>
OutputIterator CountIntersections(
CurveInputIterator curves_begin,
CurveInputIterator curves_end,
OutputIterator points
){
typedef typename std::iterator_traits<CurveInputIterator>::value_type Curve;
typename Default_arr_traits<Curve>::Traits traits;
return CountIntersections(curves_begin, curves_end, points, traits);
}
} // namespace CGAL
int main(){
//Points as extracted from https://scicomp.stackexchange.com/q/23222/17088
const std::vector<Point_2> pts = {
Point_2( 57,931),
Point_2(447,699),
Point_2(899,748),
Point_2(863,137),
Point_2(530, 67),
Point_2(142,282)
};
//Points are fully connected
std::vector<Segment_2> segments;
for(int i=0; i<pts.size();i++)
for(int j=i+1;j<pts.size();j++){
segments.emplace_back(pts[i],pts[j]);
std::cout<<pts[i]<<"\n"<<pts[j]<<"\n\n";
}
// Compute all intersection points.
std::list<Point_2> ipts;
CGAL::CountIntersections(segments.begin(), segments.end(), std::back_inserter(ipts));
for(const auto &x: segments)
std::cout<<(&x)<<std::endl;
// Print the result.
std::cout << "Found " << ipts.size() << " intersection points: " << std::endl;
std::copy(ipts.begin(), ipts.end(),
std::ostream_iterator<Point_2>(std::cout, "\n"));
return 0;
}
